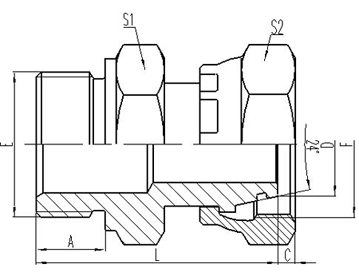

Product Name: 2GD BSP THREAD STUD ENDS WITH O-RING SEALING/METRIC FEMALE 24CONE O-RING SEALING
Prouduct Model:2GD
Product Category:EATON STANDARD
Product Description::



THREAD

TUBE O.D

DIMENSIONS

PART NO.

E

F

D

A

C

L

S1

S2

2GD-04-14

G1/4"X19

M14X1.5

6

10

1.5

40

19

19

2GD-04-16

G1/4"X19

M16X1.5

8

10

1.5

40

19

22

2GD-06-18

G3/8"X19

M18X1.5

10

11.5

2

44

22

24

2GD-08-22

G1/2"X14

M22X1.5

14

14

2.5

51

27

27

2GD-08-24

G1/2"X14

M24X1.5

16

14

2.5

53

27

30

2GD-12-30

G3/4"X14

M30X2

20

15.5

3

59.5

32

36

2GD-16-36

G1"X11

M36X2

25

18

3

64.5

41

41

2GD-20-42

G1.1/4"X11

M42X2

30

20

5

72

50

50

2GD-24-52

G1.1/2"X11

M52X2

38

21.5

6.5

75.5

55

60
