Product Name: 5N9 USA Taper Pipe Thread Sealing Transition Joint

Prouduct Model:5N9

Product Category:EATON STANDARD

Product Description:：

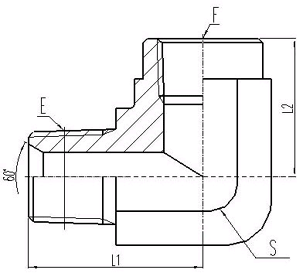

	THREAD		DIMENSIONS
PART NO.	E	F	L1	L2	S
5N9 -02	Z1/8" X27	Z1/8" X27	24.5	16.8	16
5N9 -04	Z1/4" X18	Z1/4" X18	28	25	19
5N9 -06	Z3/8" X18	Z3/8" X18	33.5	27	24
5N9 -08	Z1/2" X14	Z1/2" X14	41.2	31.2	30
5N9 -12	Z3/4" X14	Z3/4" X14	45.2	34.5	33
5N9 -16	Z1" X11.5	Z1" X11.5	54.5	43	41
