Product Name: 7N USA Taper Pipe Thread Sealing Transition Joint

Prouduct Model:7N

Product Category:EATON STANDARD

Product Description:：

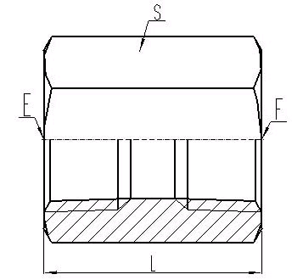

	THREAD		DIMENSIONS
PART NO.	E	F	S1	L
7N-02	Z1/8" X27	Z1/8" X27	17	24
7N-02-04	Z1/8" X27	Z1/4" X18	19	27
7N-02-06	Z1/8" X27	Z3/8" X18	22	30
7N-04	Z1/4" X18	Z1/4" X18	19	29
7N-04-06	Z1/4" X18	Z3/8" X18	22	31
7N-04-08	Z1/4" X18	Z1/2" X14	30	35
7N-04-12	Z1/4" X18	Z3/4" X14	36	39.5
7N-06	Z3/8" X18	Z3/8" X18	22	29
7N-06-08	Z3/8" X18	Z1/2" X14	30	38
7N-06-12	Z3/8" X18	Z3/4" X14	36	40
7N-08	Z1/2" X14	Z1/2" X14	30	38
7N-08-12	Z1/2" X14	Z3/4" X14	36	43
7N-12	Z3/4" X14	Z3/4" X14	36	39
7N-12-16	Z3/4" X14	Z1" X11.5	41	45.5
7N-16	Z1" X11.5	Z1" X11.5	41	48
7N-20	Z1.1/4"X11.5	Z1.1/4"X11.5	50	49
7N-24	Z1.1/2"X11.5	Z1.1/2"X11.5	60	49
7N-32	Z2"X11.5	Z2"X11.5	70	50
