THREAD

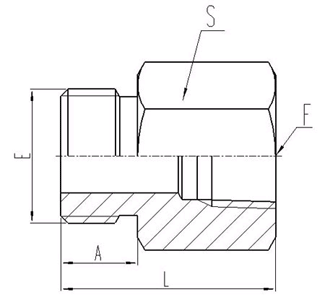

DIMENSIONS

PART NO.

E

F

A

S

L

5ON-04-02

7/16"X20

Z1/8"X27

9.1

17

26

5ON-04

7/16"X20

Z1/4"X18

9.1

19

30.5

5ON-04-06

7/16"X20

Z3/8"X18

9.1

24

30.7

5ON-05-02

1/2"X20

Z1/8"X27

9.1

17

26

5ON-06-04

9/16"X18

Z1/4"X18

9.9

19

31.5

5ON-08-04

3/4"X16

Z1/4"X18

11.1

22

32.5

5ON-08-06

3/4"X16

Z3/8"X18

11.1

22

34

5ON-08

3/4"X16

Z1/2"X14

11.1

30

40

5ON-08-12

3/4"X16

Z3/4"X14

11.1

36

40.1

5ON-10-04

7/8"X14

Z1/4"X18

12.7

27

34

5ON-10-08

7/8"X14

Z1/2"X14

12.7

30

41.5

5ON-10-06

7/8"X14

Z3/8"X18

12.7

27

35.5

5ON-10-12

7/8"X14

Z3/4"X14

12.7

36

41

5ON-12-08

1.1/16"X12

Z1/2"X14

15.1

32

42

5ON-12

1.1/16"X12

Z3/4"X14

15.1

36

45.5

5ON-12-16

1.1/16"X12

Z1"X11.5

15.1

41

50.3

5ON-14-08

1.3/16"X12

Z1/2"X14

15.1

36

40

5ON-14-12

1.3/16"X12

Z3/4"X14

15.1

36

43

5ON-16-08

1.5/16"X12

Z1/2"X14

15.1

38

42

5ON-16-12

1.5/16"X12

Z3/4"X14

15.1

38

43

5ON-16

1.5/16"X12

Z1"X11.5

15.1

41

51.5

5ON-20-16

1.5/8"X12

Z1"X11.5

15.1

50

42

5ON-20

1.5/8"X12

Z1.1/4"X11.5

15.1

50

53.5

5ON-24-16

1.7/8"X12

Z1"X11.5

15.1

55

45

5ON-24

1.7/8"X12

Z1.1/2"X11.5

15.1

60

53.5

5ON-32-16

2.1/2"X12

Z1"X11.5

15.1

70

45

5ON-32-24

2.1/2"X12

Z1.1/2"X11.5

15.1

70

45

5ON-32

2.1/2"X12

2"X11.5

15.1

70

53.5
