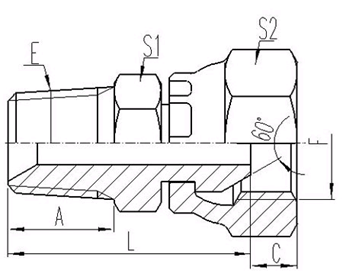

THREAD

DIMENSIONS

PART NO.

E

F

A

C

S1

S2

L

2NB-02

Z1/8"X27

G1/4"X28

10.5

5.5

12

14

25.5

2NB-02-04

Z1/8"X27

G1/4"X19

10.5

5.5

14

19

27

2NB-04

Z1/4"X18

G1/4"X19

15

5.5

17

19

31

2NB-04-06

Z1/4"X18

G3/8"X19

15

6.3

17

22

32.5

2NB-04-08

Z1/4"X18

G1/2"X14

15

7.5

19

27

34

2NB-06-04

Z3/8"X18

G1/4"X19

16

5.5

19

19

32

2NB-06

Z3/8"X18

G3/8"X19

16

6.3

19

22

33.5

2NB-06-08

Z3/8"X18

G1/2"X14

16

7.5

19

27

35

2NB-08-06

Z1/2"X14

G3/8"X19

19.5

6.3

22

22

39.5

2NB-08-12

Z1/2"X14

G3/4"X14

19.5

10.9

27

32

44.5

2NB-08

Z1/2"X14

G1/2"X14

19.5

7.5

22

27

41

2NB-12

Z3/4"X14

G3/4"X14

19.5

10.9

30

32

44

2NB-12-08

Z3/4"X14

G1/2"X14

19.5

7.5

30

27

43.5

2NB-12-16

Z3/4"X14

G 1"X11

19.5

11.7

32

41

46.5

2NB-16

Z 1"X11.5

G 1"X11

25.5

11.7

36

41

52

2NB-20

Z1.1/4"X11.5

G1.1/4"X11

26.5

11

46

50

58

2NB-24

Z1.1/2"X11.5

G1.1/2"X11

27.5

13

50

55

61.5

2NB-32

Z2"X11.5

G2"X11

27.5

16

65

70

66.5
