Product Name: 1NT-SP USA Taper Pipe Thread Sealing Transition Joint

Prouduct Model:1NT-SP

Product Category:EATON STANDARD

Product Description:：

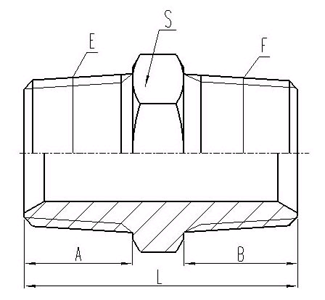

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S	L
1NT-04SP	Z1/4"X18	R1/4"X19	14	14	17	34
1NT-06SP	Z3/8"X18	R3/8"X19	15	14	19	35
1NT-08SP	Z1/2"X14	R1/2"X14	19	19	24	46
1NT-12SP	Z3/4"X14	R3/4"X14	19	19.5	30	48
1NT-16SP	Z1"X11.5	R1"X11	24	24	36	59
1NT-20-16SP	Z1.1/4"X11.5	R1"X11	25	24	46	62
