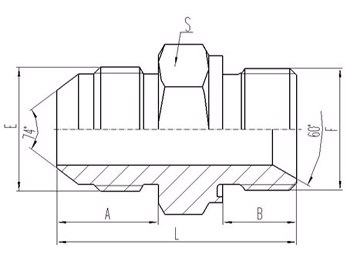

Product Name: 1JB-WD USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:1JB-WD
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

A

B

S

L

1JB-04-02WD

7/16" X20

G1/8" X28

14

8

14

29.5

1JB-04WD

7/16" X20

G1/4" X19

14

12

19

34

1JB-04-06WD

7/16" X20

G3/8" X19

14

12

22

34.5

1JB-05-04WD

1/2" X20

G1/4" X19

14

12

19

34

1JB-06-04WD

9/16" X18

G1/4" X19

14

12

19

34

1JB-06WD

9/16" X18

G3/8" X19

14

12

22

36.5

1JB-06-08WD

9/16" X18

G1/2" X14

14

14

27

41

1JB-08-04WD

3/4" X16

G1/4" X19

16.7

12

22

37

1JB-08-06WD

3/4" X16

G3/8" X19

16.7

12

22

37.5

1JB-08WD

3/4" X16

G1/2" X14

16.7

14

27

43.5

1JB-08-12WD

3/4" X16

G3/4" X14

16.7

16

32

45

1JB-10-08WD

7/8" X14

G1/2" X14

19.3

14

27

46.5

1JB-10-12WD

7/8" X14

G3/4" X14

19.3

16

32

47.5

1JB-12-08WD

1X1/16" X12

G1/2" X14

22

14

30

48.5

1JB-12WD

1X1/16" X12

G3/4" X14

22

16

32

50

1JB-12-16WD

1X1/16" X12

G1" X11

22

18

41

56

1JB-12-20WD

1X1/16" X12

G1X1/4" X11

22

20

50

60

1JB-16-12WD

1X5/16" X12

G3/4" X14

23

16

36

53

1JB-16WD

1X5/16" X12

G1" X11

23

18

41

57

1JB-16-20WD

1X5/16" X12

G1X1/4" X11

23

20

50

61

1JB-20-16WD

1X5/8" X12

G1" X11

24.3

18

46

58

1JB-20WD

1X5/8" X12

G1X1/4" X11

24.3

20

50

62

1JB-20-24WD

1X5/8" X12

G1X1/2" X11

24.3

22

55

64

1JB-24-20WD

1X7/8" X12

G1X1/4" X11

27.5

20

50

65.5

1JB-24WD

1X7/8" X12

G1X1/2" X11

27.5

22

55

67.5

1JB-32WD

2X1/2" X12

G/2" X11

34

20

75

75
