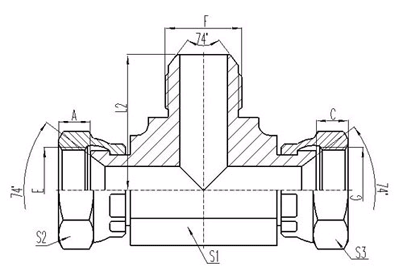

Product Name: EJ USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:EJ
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E,F,G

A,C

S1

S2,S3

L2

EJ-04

7/16"X20

9

11

15

24.5

EJ-06

9/16"X18

10.5

14

19

26.9

EJ-08

3/4"X16

11

19

24

32

EJ-10

7/8"X14

14

22

27

37.8

EJ-12

1.1/16"X12

15

27

32

44.2

EJ-16

1.5/16"X12

16

33

41

49

EJ-20

1.5/8"X12

17

41

50

56

EJ-24

1.7/8"X12

20

48

60

62.5

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
