Product Name: DJ USA JIC Thread 74��Conical Surface Sealing Transition Joint

Prouduct Model:DJ

Product Category:EATON STANDARD

Product Description:：

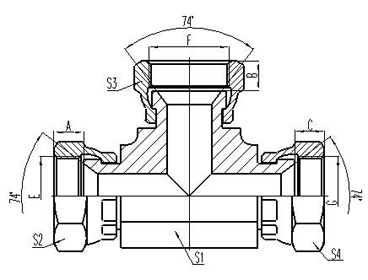

THREAD	DIMENSIONS
PART NO.	E,F,G	A,B,C	S1	S2,S3,S4
DJ-04	7/16"X20	9	11	15
DJ-05	1/2"X20	9.5	11	17
DJ-06	9/16"X18	10.5	14	19
DJ-08	3/4"X16	11	16	24
DJ-10	7/8"X14	14	19	27
DJ-12	1.1/16"X12	15	24	32
DJ-16	1.5/16"X12	16	30	41
