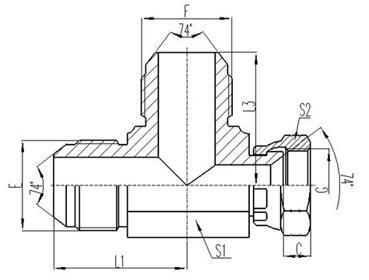

Product Name: CJ USA JIC Thread 74¡ãConical Surface Sealing Transition Joint
Prouduct Model:CJ
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E,F,G

L1,L3

C

S1

S2

CJ-04

7/16"X20

24.5

9

11

15

CJ-05

1/2"X20

26.6

9.5

14

17

CJ-06

9/16"X18

26.9

10.5

14

19

CJ-08

3/4"X16

32

11

19

24

CJ-10

7/8"X14

37.8

14

22

27

CJ-12

1.1/16"X12

44.2

15

27

32

CJ-14

1.3/16"X12

47.5

15

30

36

CJ-16

1.5/16"X12

49

16

33

41

CJ-20

1.5/8"X12

55.5

17

41

50

CJ-24

1.7/8"X12

62.5

20

48

55

CJ-32

2.1/2"X12

78

24.5

63

75

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
