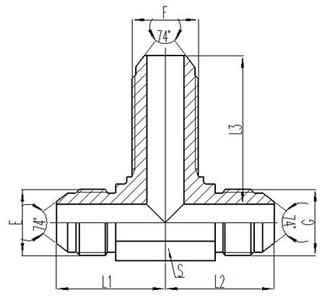

THREAD | DIMENSIONS | ||||||
PART NO. | E | F | G | L1 | L2 | L3 | S |
AJ6JJ-04 | 7/16"X20 | 7/16"X20 | 7/16"X20 | 24.5 | 24.5 | 40.4 | 11 |
AJ6JJ-05 | 1/2"X20 | 1/2"X20 | 1/2"X20 | 26.6 | 26.6 | 43.7 | 14 |
AJ6JJ-06 | 9/16"X18 | 9/16"X18 | 9/16"X18 | 26.9 | 26.9 | 46 | 14 |
AJ6JJ-08 | 3/4"X16 | 3/4"X16 | 3/4"X16 | 32 | 32 | 53.5 | 19 |
AJ6JJ-10 | 7/8"X14 | 7/8"X14 | 7/8"X14 | 37.8 | 37.8 | 60.7 | 22 |
AJ6JJ-12 | 1.1/16"X12 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 44.2 | 67.8 | 27 |
AJ6JJ-14 | 1.3/16"X12 | 1.3/16"X12 | 1.3/16"X12 | 46.2 | 46.2 | 69.5 | 30 |
AJ6JJ-16 | 1.5/16"X12 | 1.5/16"X12 | 1.5/16"X12 | 49 | 49 | 71 | 33 |
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
