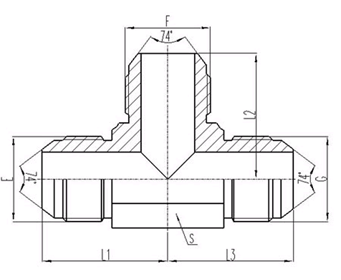

Product Name: AJ USA JIC Thread 74¡ãConical Surface Sealing Transition Joint
Prouduct Model:AJ
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

G

L1

L2

L3

S

AJ-04

7/16"X20

7/16"X20

7/16"X20

24.5

24.5

24.5

11

AJ-04-06-04

7/16"X20

9/16"X18

7/16"X20

26.6

26.9

26.6

14

AJ-05

1/2"X20

1/2"X20

1/2"X20

26

26

26

14

AJ-06-04-06

9/16"X18

7/16"X20

9/16"X18

26.9

26.6

26.9

14

AJ-06

9/16"X18

9/16"X18

9/16"X18

26.9

26.9

26.9

14

AJ-08

3/4"X16

3/4"X16

3/4"X16

32

32

32

19

AJ-08-06-08

3/4"X16

9/16"X18

3/4"X16

32

30

32

19

AJ-10

7/8"X14

7/8"X14

7/8"X14

37.8

37.8

37.8

22

AJ-12

1.1/16"X12

1.1/16"X12

1.1/16"X12

44.2

44.2

44.2

27

AJ-16

1.5/16"X12

1.5/16"X12

1.5/16"X12

49

49

49

33

AJ-16-12-16

1.5/16"X12

1.1/16"X12

1.5/16"X12

49

48

49

33

AJ-20

1.5/8"X12

1.5/8"X12

1.5/8"X12

56.5

56.5

56.5

41

AJ-24

1.7/8"X12

1.7/8"X12

1.7/8"X12

63

63

63

48

AJ-32

2.1/2"X12

2.1/2"X12

3.1/2"X12

78

78

78

63

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
