Product Name: 2J4 USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:2J4
Product Category:EATON STANDARD
Product Description::

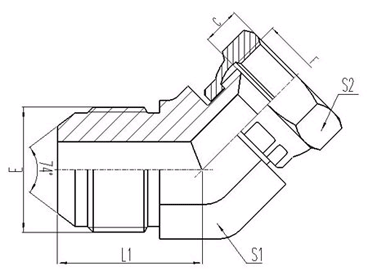

THREAD

DIMENSIONS

PART NO.

E

F

L1

C

S1

S2

2J4-04

7/16"X20

7/16"X20

21.5

9

11

15

2J4-05

1/2"X20

1/2"X20

22.3

9.5

14

17

2J4-06

9/16"X18

9/16"X18

22.8

10.5

14

19

2J4-08

3/4"X16

3/4"X16

26.8

11

19

24

2J4-10

7/8"X14

7/8"X14

31

14

22

27

2J4-12

1.1/16"X12

1.1/16"X12

35.5

15

27

32

2J4-16

1.5/16"X12

1.5/16"X12

38.5

16

33

41

2J4-20

1.5/8"X12

1.5/8"X12

43

17

41

50

2J4-24

1.7/8"X12

1.7/8"X12

49

20

48

60

2J4-32

2.1/2"X12

2.1/2"X12

58

24.5

63

75

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
