Product Name: 1JT9-SP USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:1JT9-SP
Product Category:EATON STANDARD
Product Description::

THREAD

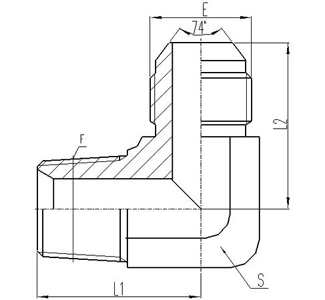

DIMENSIONS

PART NO.

E

F

L1

L2

S

1JT9-04-02SP

7/16"X20

R1/8"X28

24.5

21

11

1JT9-04SP

7/16"X20

R1/4"X19

26.6

25.5

14

1JT9-04-06SP

7/16"X20

R3/8"X19

27.5

28.5

16

1JT9-04-08SP

7/16"X20

R1/2"X14

31.5

36

22

1JT9-05-02SP

1/2"X20

R1/8"X28

26.6

23.5

14

1JT9-05-04SP

1/2"X20

R1/4"X19

26.6

25.5

14

1JT9-05-06SP

1/2"X20

R3/8"X19

27.5

28.5

16

1JT9-06-02SP

9/16"X18

R1/8"X28

26.9

23.5

14

1JT9-06-04SP

9/16"X18

R1/4"X19

26.9

25.5

14

1JT9-06SP

9/16"X18

R3/8"X19

28.5

28.5

16

1JT9-06-08SP

9/16"X18

R1/2"X14

32

36

22

1JT9-08-04SP

3/4"X16

R1/4"X19

32

28

19

1JT9-08-06SP

3/4"X16

R3/8"X19

32

30.5

19

1JT9-08SP

3/4"X16

R1/2"X14

34.8

36

22

1JT9-10-06SP

7/8"X14

R3/8"X19

37.8

32.5

22

1JT9-10-08SP

7/8"X14

R1/2"X14

37.8

36

22

1JT9-10-12SP

7/8"X14

R3/4"X14

41

43.5

27

1JT9-10-16SP

7/8"X14

R1"X11

44.5

50

33

1JT9-12-08SP

1.1/16"X12

R1/2"X14

44.2

39.5

27

1JT9-12SP

1.1/16"X12

R3/4"X14

44.2

43.5

27

1JT9-12-16SP

1.1/16"X12

R1"X11

48

50

33

1JT9-16-12SP

1.5/16"X12

R3/4"X14

49

47.5

33

1JT9-16SP

1.5/16"X12

R1"X11

49

50

33

1JT9-16-20SP

1.5/16"X12

R1.1/4"X11

54

59

41

1JT9-20-16SP

1.5/8"X12

R1"X11

55.5

56.5

41

1JT9-20SP

1.5/8"X12

R1.1/4"X11

55.5

59

41

1JT9-20-24SP

1.5/8"X12

R1.1/2"X11

59.4

62.5

48

1JT9-24-16SP

1.7/8"X12

R1"X11

62.5

60

48

1JT9-24SP

1.7/8"X12

R1.1/2"X11

62.5

62.5

48

1JT9-32SP

2.1/2"X12

R2"X11

75

67

63

?: .D,?HNB200?HNB500?,?HNB200?HNB300?
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
