Product Name: 1JT4-SP USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:1JT4-SP
Product Category:EATON STANDARD
Product Description::

THREAD

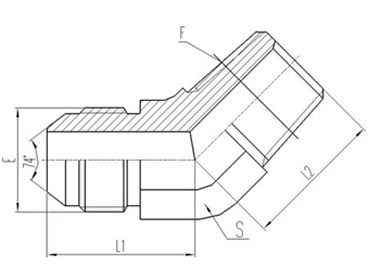

DIMENSIONS

PART NO.

E

F

L1

L2

S

1JT4-04-02SP

7/16"X20

R1/8"X28

21.5

17

11

1JT4-04SP

7/16"X20

R 1/4"X19

22.3

21

14

1JT4-04-06SP

7/16"X20

R3/8"X19

22.8

23

16

1JT4-04-08SP

7/16"X20

R1/2"X14

24.5

29.5

22

1JT4-05-02SP

1/2"X20

R1/8"X28

22.3

17.5

14

1JT4-05-04SP

1/2"X20

R1/4"X19

22.3

21

14

1JT4-05-06SP

1/2"X20

R3/8"X19

22.8

23

16

1JT4-06-02SP

9/16"X18

R1/8"X28

22.8

17.5

14

1JT4-06-04SP

9/16"X18

R1/4"X19

22.8

21

14

1JT4-06SP

9/16"X18

R3/8"X19

23

23

16

1JT4-06-08SP

9/16"X18

R1/2"X14

25

29.5

22

1JT4-06-12SP

9/16"X18

R3/4"X14

26.5

30.5

27

1JT4-08-04SP

3/4"X16

R1/4"X19

26.8

22

19

1JT4-08-06SP

3/4"X16

R3/8"X19

26.8

24

19

1JT4-08SP

3/4"X16

R1/2"X14

28

29.5

22

1JT4-10-06SP

7/8"X14

R3/8"X19

31

25

22

1JT4-10-08SP

7/8"X14

R1/2"X19

31

29.5

22

1JT4-10-12SP

7/8"X14

R3/4"X14

32

30.5

27

1JT4-10-16SP

7/8"X14

R1"X11

34

38

33

1JT4-12-08SP

1.1/16"X12

R1/2"X14

35.5

30

27

1JT4-12SP

1.1/16"X12

R3/4"X14

35.5

30.5

27

1JT4-12-16SP

1.1/16"X12

R1"X11

37.5

38

33

1JT4-16-12SP

1.5/16"X12

R3/4"X14

38.5

32.5

33

1JT4-16SP

1.5/16"X12

R1"X11

38.5

38

33

1JT4-16-20SP

1.5/16"X12

R1.1/4"X11

42

43

41

1JT4-20-16SP

1.5/8"X12

R1"X11

43

42

41

1JT4-20SP

1.5/8"X12

R1.1/4"X11

43

43

41

1JT4-20-24SP

1.5/8"X12

R1.1/2"X11

46

47.5

48

1JT4-24-16SP

1.7/8"X12

R1"X11

49

44.5

48

1JT4-24-20SP

1.7/8"X12

R1.1/4"X11

49

45.5

48

1JT4-24SP

1.7/8"X12

R1.1/2"X11

49

47.5

48

?: .D,?HNB200?HNB500?,?HNB200?HNB300?
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
