Product Name: 1JN9 USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:1JN9
Product Category:EATON STANDARD
Product Description::

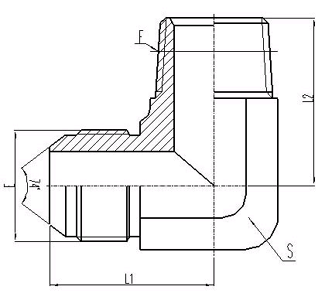

THREAD

DIMENSIONS

PART NO.

E

F

L1

L2

S

1JN9-04-02

7/16"X20

Z1/8"X27

24.5

21

11

1JN9-04

7/16"X20

Z1/4"X18

26.6

25.5

14

1JN9-04-06

7/16"X20

Z3/8"X18

27.5

29.5

16

1JN9-04-08

7/16"X20

Z1/2"X14

31.5

36.7

22

1JN9-05-02

1/2"X20

Z1/8"X27

26.6

23.5

14

1JN9-05-04

1/2"X20

Z1/4"X18

26.6

25.5

14

1JN9-05-06

1/2"X20

Z3/8"X18

27.5

29.5

16

1JN9-06-02

9/16"X18

Z1/8"X27

26.9

23.5

14

1JN9-06-04

9/16"X18

Z1/4"X18

26.9

25.5

14

1JN9-06

9/16"X18

Z3/8"X18

28.5

29.5

16

1JN9-06-08

9/16"X18

Z1/2"X14

32

36.7

22

1JN9-08-04

3/4"X16

Z1/4"X18

32

28

19

1JN9-08-06

3/4"X16

Z3/8"X18

32

31

19

1JN9-08

3/4"X16

Z1/2"X14

34.8

36.7

22

1JN9-08-12

3/4"X16

Z3/4"X14

37.9

44

27

1JN9-10-06

7/8"X14

Z3/8"X18

37.8

32.5

22

1JN9-10-08

7/8"X14

Z1/2"X14

37.8

36.7

22

1JN9-10-12

7/8"X14

Z3/4"X14

41

44

27

1JN9-12-08

1.1/16"X12

Z1/2"X14

44.2

40

27

1JN9-12

1.1/16"X12

Z3/4"X14

44.2

44

27

1JN9-12-16

1.1/16"X12

Z 1"X11.5

48

50

33

1JN9-16-12

1.5/16"X12

Z3/4"X14

49

45.2

33

1JN9-16

1.5/16"X12

Z 1"X11.5

49

50

33

1JN9-16-20

1.5/16"X12

Z1.1/4"X11.5

54

60

41

1JN9-20-16

1.5/8"X12

Z1"X11.5

55.5

59.6

41

1JN9-20

1.5/8"X12

Z1.1/4"X11.5

55.5

60

41

1JN9-20-24

1.5/8"X12

Z1.1/2"X11.5

59.4

63

48

1JN9-24-20

1.7/8"X12

Z1.1/4"X11.5

62.5

63

48

1JN9-24

1.7/8"X12

Z1.1/2"X11.5

62.5

63

48

1JN9-32

2.1/2"X12

Z2"X11.5

75.4

67.5

63

?:?D,?HNB200?HNB500?,?HNB200?HNB300?
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
