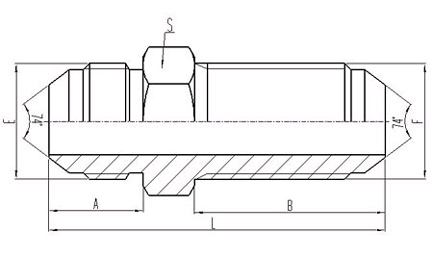

Product Name: 6J USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:6J
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

A

B

S

L

6J-04

7/16"X20

7/16"X20

14

32.5

17

52.5

6J-05

1/2"X20

1/2"X20

14

32.5

19

52.5

6J-06

9/16"X18

9/16"X18

14

32.5

22

54.5

6J-08

3/4"X16

3/4"X16

16

36.5

24

63.5

6J-10

7/8"X14

7/8"X14

19.3

40

30

69.5

6J-12

1.1/16"X12

1.1/16"X12

22

44.5

36

78.5

6J-16

1.5/16"X12

1.5/16"X12

23

44.5

41

79.8

6J-20

1.5/8"X12

1.5/8"X12

24.3

45.7

50

84

6J-24

1.7/8"X12

1.7/8"X12

27.5

46

55

89.5

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
