Product Name: 5JN USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:5JN
Product Category:EATON STANDARD
Product Description::

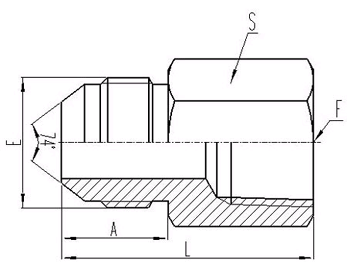

THREAD

DIMENSIONS

PART NO.

E

F

A

L

S

5JN-04-02

7/16"X20

Z1/8"X27

14

30.2

14

5JN-04

7/16"X20

Z1/4"X18

14

35.3

19

5JN-05-02

1/2"X20

Z1/8"X27

14

29.7

14

5JN-05-04

1/2"X20

Z1/4"X18

14

35.3

19

5JN-06-04

9/16"X18

Z1/4"X18

14.1

35.6

19

5JN-06

9/16"X18

Z3/8"X18

14.1

37.1

22

5JN-08-06

3/4"X16

Z3/8"X18

16.7

39.6

22

5JN-08

3/4"X16

Z1/2"X14

16.7

45.6

30

5JN-10-08

7/8"X14

Z1/2"X14

19.3

48

30

5JN-10-12

7/8"X14

Z3/4"X14

19.3

49.7

36

5JN-12-08

1.1/16"X12

Z1/2"X14

21.9

52.1

30

5JN-12

1.1/16"X12

Z3/4"X14

21.9

52.3

36

5JN-16

1.5/16"X12

Z1"X11.5

23.1

59.7

41

5JN-20

1.5/8"X12

Z1.1/4"X11.5

24.3

63.2

50

5JN-24

1.7/8"X12

Z1.1/2"X11.5

27.5

66.5

60

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
