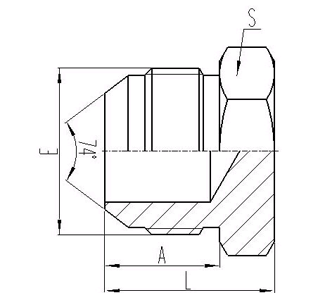

Product Name: 4J USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:4J
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

A

S

L

4J-04

7/16"X20

14

12

20

4J-05

1/2"X20

14

14

20

4J-06

9/16"X18

14

17

20

4J-08

3/4"X16

16.7

22

25

4J-10

7/8"X14

19.3

24

27.5

4J-12

1.1/16"X12

22

30

32

4J-14

1.3/16"X12

22.5

32

33.5

4J-16

1.5/16"X12

23

36

34

4J-20

1.5/8"X12

24.3

46

38

4J-24

1.7/8"X12

27.5

50

44.5

4J-32

2.1/2"X12

34

65

51

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
