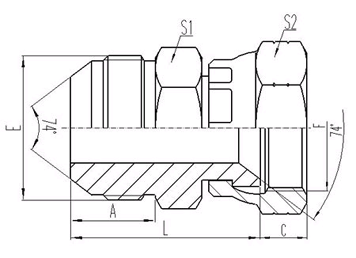

Product Name: 2J USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:2J
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

A

C

S1

S2

L

2J-04

7/16"X20

7/16"X20

14

9

12

15

28

2J-04-05

7/16"X20

1/2"X20

14

9.5

12

17

28.5

2J-04-06

7/16"X20

9/16"X18

14

10.5

14

19

28.5

2J-04-08

7/16"X20

3/4"X16

14

11

19

24

30.5

2J-05

1/2"X20

1/2"X20

14

9.5

14

17

29

2J-05-06

1/2"X20

9/16"X18

14

10.5

14

19

28.5

2J-05-08

1/2"X20

3/4"X16

14

11

19

24

30.5

2J-05-10

1/2"X20

7/8"X14

14

14

22

27

33

2J-06

9/16"X18

9/16"X18

14

10.5

17

19

29

2J-06-08

9/16"X18

3/4"X16

14

11

19

24

31

2J-06-10

9/16"X18

7/8"X14

14

14

22

27

33.5

2J-06-12

9/16"X18

1.1/16"X12

14

15

27

32

36.5

2J-08-06

3/4"X16

9/16"X18

16.7

10.5

22

19

34

2J-08

3/4"X16

3/4"X16

16.7

11

22

24

36

2J-08-10

3/4"X16

7/8"X14

16.7

14

22

27

36.5

2J-08-12

3/4"X16

1.1/16"X12

16.7

15

27

32

39.5

2J-10-06

7/8"X14

9/16"X18

19.3

10.5

24

19

36

2J-10-08

7/8"X14

3/4"X16

19.3

11

38

24

24

2J-10

7/8"X14

7/8"X14

19.3

14

24

27

39

2J-10-12

7/8"X14

1.1/16"X12

19.3

15

27

32

42

2J-12-08

1.1/16"X12

3/4"X16

22

11

30

24

42.5

2J-12-10

1.1/16"X13

7/8"X14

22

14

30

27

43.5

2J-12

1.1/16"X12

1.1/16"X12

22

15

30

32

44.6

2J-12-16

1.1/16"X12

1.5/16"X12

22

16

36

41

45.5

2J-16

1.5/16"X12

1.5/16"X12

23

16

36

41

46.5

2J-16-20

1.5/16"X12

1.5/8"X12

23

17

41

50

50

2J-20

1.5/8"X12

1.5/8"X12

24.3

17

46

50

51.5

2J-20-24

1.5/8"X12

1.7/8"X12

24.3

20

46

55

52

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
