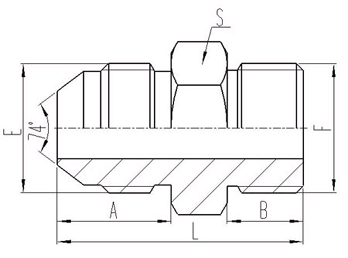

THREAD | DIMENSIONS | |||||
PART NO. | E | F | A | B | L | S |
1JO-04 | 7/16"X20 | 7/16"X20 | 14 | 9.1 | 29 | 14 |
1JO-05 | 1/2"X20 | 1/2"X20 | 14 | 9.1 | 29 | 17 |
1JO-06 | 9/16"X18 | 9/16"X18 | 14.1 | 9.9 | 30 | 17 |
1JO-08 | 3/4"X16 | 3/4"X16 | 16.7 | 11.1 | 36 | 22 |
1JO-10 | 7/8"X14 | 7/8"X14 | 19.3 | 12.7 | 42.5 | 27 |
1JO-12 | 1.1/16"X12 | 1.1/16"X12 | 21.9 | 15.1 | 48 | 32 |
1JO-14 | 1.3/16"X12 | 1.3/16"X12 | 22.6 | 15.1 | 48.5 | 36 |
1JO-16 | 1.5/16"X12 | 1.5/16"X12 | 23.1 | 15.1 | 49 | 38 |
1JO-20 | 1.5/8"X12 | 1.5/8"X12 | 24.3 | 15.1 | 54.5 | 50 |
1JO-24 | 1.7/8"X12 | 1.7/8"X12 | 27.5 | 15.1 | 57.5 | 55 |
1JO-32 | 2.1/2"X12 | 2.1/2"X12 | 33.9 | 15.1 | 66 | 70 |
?:?D,?HNB200?HNB500?,?HNB200?HNB300?
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
