Product Name: 1JM-WD USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:1JM-WD
Product Category:EATON STANDARD
Product Description::

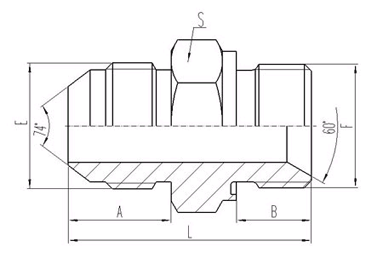

THREAD

DIMENSIONS

PART NO.

E

F

A

B

S

L

1JM-04-12WD

7/16"X20

M12X1.5

14

12

17

34

1JM-05-14WD

1/2"X20

M14X1.5

14

12

19

34

1JM-06-14WD

9/16"X18

M14X1.5

14.1

12

19

34

1JM-06-18WD

9/16"X18

M18X1.5

14.1

12

24

36.5

1JM-06-20WD

9/16"X18

M20X1.5

14.1

14

27

40.5

1JM-08-16WD

3/4"X16

M16X1.5

16.7

12

22

38.5

1JM-08-18WD

3/4"X16

M18X1.5

16.7

12

24

39

1JM-08-20WD

3/4"X16

M20X1.5

16.7

14

27

43

1JM-08-22WD

3/4"X16

M22X1.5

16.7

14

27

43.5

1JM-10-20WD

7/8" X14

M20X1.5

19.3

14

27

45.5

1JM-10-22WD

7/8" X14

M22X1.5

19.3

14

27

46

1JM-12-18WD

1.1/16" X12

M18X1.5

21.9

12

30

46.5

?:?D,?HNB200?HNB500?,?HNB200?HNB300?
Note: Nut and sleeve should be ordered separately, the nut HNB200 and sleeve HNB500 is suitable for metric tube, the nut HNB200 and sleev HNB300 is suitable for inch tube.
