Product Name: 1JM USA JIC Thread 74Conical Surface Sealing Transition Joint
Prouduct Model:1JM
Product Category:EATON STANDARD
Product Description::

THREAD

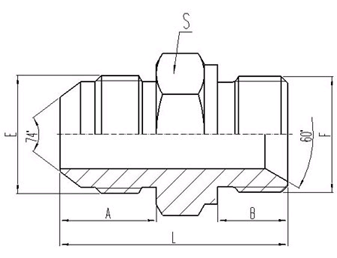

DIMENSIONS

PARTNO.

E

F

A

B

S

L

1JM-04-10

7/16"X20

M10X1

14

8

14

28

1JM-04-12

7/16"X20

M12X1.5

14

10

17

30

1JM-05-10

1/2"X20

M10X1

14

8

14

28

1JM-05-12

1/2"X20

M12X1.5

14

10

17

30

1JM-05-14

1/2"X20

M14X1.5

14

11

19

31

1JM-06-12

9/16"X18

M12X1.5

14

10

17

30

1JM-06-14

9/16"X18

M14X1.5

14

11

19

31

1JM-06-16

9/16"X18

M16X1.5

14

12

22

34

1JM-06-18

9/16"X18

M18X1.5

14

12

24

34

1JM-06-20

9/16"X18

M20X1.5

14

14

27

38

1JM-06-22

9/16"X18

M22X1.5

14

14

27

38

1JM-08-16

3/4"X16

M16X1.5

16.7

12

22

37

1JM-08-18

3/4"X16

M18X1.5

16.7

12

24

37

1JM-08-20

3/4"X16

M20X1.5

16.7

14

27

39

1JM-08-22

3/4"X16

M22X1.5

16.7

14

27

40.5

1JM-10-20

7/8" X14

M20X1.5

19.3

14

27

43

1JM-10-22

7/8" X14

M22X1.5

19.3

14

27

43

1JM-12-22

1.1/16" X12

M22X1.5

22

14

30

46

1JM-12-26

1.1/16" X12

M26X1.5

22

16

32

49

1JM-16-20

1.5/16" X12

M20X1.5

23

14

36

48

?:?D,?HNB200?HNB500?,?HNB200?HNB300?
Note:Nut and sleeve shuld be ordered separately, the nut HNB200 and sleeve HNB500 is suitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
