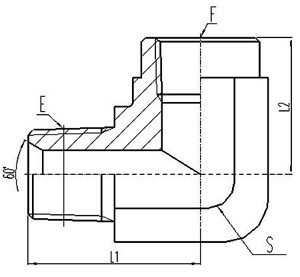

Product Name: 5T9-SP 90ELBOW BSPT MALE/BSPT FEMALE
Prouduct Model:5T9-SP
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

L1

L2

S

5T9-02SP

R1/8" X28

Rc1/8" X28

24.5

23

16

5T9-04SP

R1/4" X19

Rc1/4" X19

28

25

19

5T9-06SP

R3/8" X19

Rc3/8" X19

33.5

27

24

5T9-08SP

R1/2" X14

Rc1/2" X14

40.8

31.5

30

5T9-12SP

R3/4" X14

Rc3/4" X14

47.5

37

33

5T9-16SP

R1" X11

Rc1" X11

56.5

43

41

5T9-20SP

R1.1/4"X11

Rc1.1/4"X11

61

50

48
