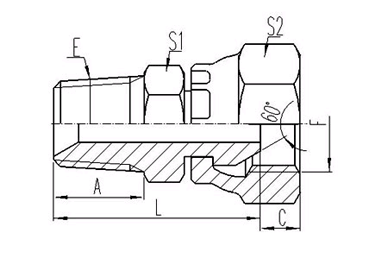

THREAD

DIMENSIONS

PART NO.

E

F

A

C

S1

S2

L

2TB-02SP

R1/8"X28

G1/8"X28

10

5.5

12

14

25

2TB-02-04SP

R1/8"X28

G1/4"X19

10

5.5

12

19

27

2TB-04SP

R1/4"X19

G1/4"X19

14.5

5.5

14

19

31

2TB-04-02SP

R1/4"X19

G1/8"X28

14.5

5.5

14

14

29

2TB-06SP

R3/8"X19

G3/8"X19

15

6.3

19

22

32.5

2TB-06-04SP

R3/8"X19

G1/4"X19

15

5.5

19

19

31

2TB-06-08SP

R3/8"X19

G1/2"X14

15

7.5

19

27

34

2TB-08SP

R1/2"X14

G1/2"X14

20

7.5

22

27

41

2TB-08-06SP

R1/2"X14

G3/8"X19

20

6.3

22

22

39

2TB-08-12SP

R1/2"X14

G3/4"X14

19

10.9

27

32

44

2TB-12SP

R3/4"X14

G3/4"X14

20

10.9

30

32

44

2TB-12-16SP

R3/4"X14

G1"X11

19.5

11.7

32

41

46.5

2TB-16SP

R1"X11

G1"X11

25.5

11.7

36

41

52

2TB-20SP

R1.1/4"X11

G1.1/4"X11

26.5

11

46

50

57.5

2TB-24SP

R1.1/2"X11

R1.1/2"X11

26.5

13

50

55

61

2TB-32SP

R2"X11

R2"X11

30

16

65

70

67.5
