THREAD

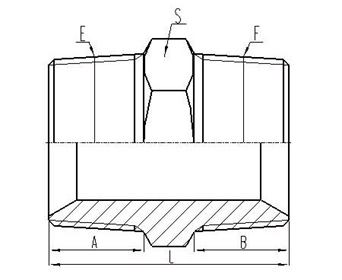

DIMENSIONS

PART NO.

E

F

A

B

S

L

1T-02SP

R1/8"X28

R1/8"X28

10

10

12

26

1T-02-04SP

R1/8"X28

R1/4"X19

10

14.5

17

30.5

1T-02-06SP

R1/8"X28

R3/8"X19

11

15

19

32

1T-04SP

R1/4"X19

R1/4"X19

14.5

14.5

17

34.5

1T-04-06SP

R1/4"X19

R3/8"X19

14.5

15

19

35

1T-04-08SP

R1/4"X19

R1/2"X14

15

20

22

43

1T-06SP

R3/8"X19

R3/8"X19

15

15

19

35

1T-06-08SP

R3/8"X19

R1/2"X14

15

20

22

41

1T-06-12SP

R3/8"X19

R3/4"X14

15.5

20

30

45.5

1T-08SP

R1/2"X14

R1/2"X14

20

20

22

46

1T-08-12SP

R1/2"X14

R3/4"X14

20

20

30

48

1T-12SP

R3/4"X14

R3/4"X14

20

20

30

48

1T-12-16SP

R3/4"X14

R 1"X11

20

25.5

36

55.5

1T-16SP

R 1"X11

R 1"X11

25.5

25.5

36

61

1T-16-20SP

R 1"X11

R1.1/4"X11

25.5

26.5

46

64

1T-20SP

R1.1/4"X11

R1.1/4"X11

26.5

26.5

46

64.5

1T-20-24SP

R1.1/4"X11

R1.1/2"X11

26.5

26.5

50

67

1T-24SP

R1.1/2"X11

R1.1/2"X11

26.5

26.5

50

67

1T-24-32SP

R1.1/2"X11

R 2"X11

26.5

30

65

71.5

1T-32SP

R 2"X11

R 2"X11

30

30

65

75
