THREAD

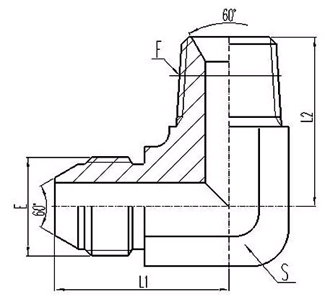

DIMENSIONS

PART NO. >

E

F

L1

L2

S

1ST9-02SP

G1/8"X28

R1/8"X28

21.8

21

11

1ST9-02-04SP

G1/8"X28

R1/4"X19

24.3

25.5

14

1ST9-04-02SP

G1/4"X19

R1/8"X28

26.3

23.5

14

1ST9-04SP

G1/4"X19

R1/4"X19

26.3

25.5

14

1ST9-04-06SP

G1/4"X19

R3/8"X19

27.7

28.5

16

1ST9-04-08SP

G1/4"X19

R1/2"X14

31

36

22

1ST9-06-04SP

G3/8"X19

R1/4"X19

29

26.5

16

1ST9-06SP

G3/8"X19

R3/8"X19

29

28.5

16

1ST9-06-08SP

G3/8"X19

R1/2"X19

33.5

36

22

1ST9-06-12SP

G3/8"X19

R3/4"X14

36.5

43.5

27

1ST9-08-04SP

G1/2"X14

R1/4"X19

37

30.5

22

1ST9-08-06SP

G1/2"X14

R3/8"X19

37

32.5

22

1ST9-08SP

G1/2"X14

R1/2"X14

37

36

22

1ST9-08-12SP

G1/2"X14

R3/4"X14

40

43.5

27

1ST9-08-16SP

G1/2"X14

R 1"X11

43.5

50

33

1ST9-12-06SP

G3/4"X14

R3/8"X19

41.5

36

27

1ST9-12-08SP

G3/4"X14

R1/2"X14

41.5

39.5

27

1ST9-12SP

G3/4"X14

R3/4"X14

41.5

43.5

27

1ST9-12-16SP

G3/4"X14

R1"X11

45.5

50

33

1ST9-16-12SP

G1"X11

R3/4"X14

47.5

47.5

33

1ST9-16SP

G1"X11

R1"X11

47.5

50

33

1ST9-16-20SP

G1"X11

R1.1/4"X11

53

59

41

1ST9-20SP

G1.1/4"X11

R1.1/4"X11

57

59

41

1ST9-24SP

G1.1/2"X11

R1.1/2"X11

61

62.5

48
