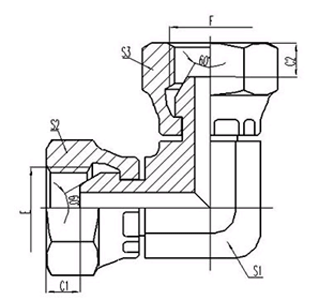

| THREAD | DIMENSIONS | |||||
PART NO. | E | F | C1 | C2 | S1 | S2 | S3 |
3B9-04 | G1/4"X19 | G1/4"X19 | 5.5 | 5.5 | 11 | 19 | 19 |
3B9-06 | G3/8"X19 | G3/8"X19 | 6.3 | 6.3 | 14 | 22 | 22 |
3B9-06-08 | G3/8"X19 | G1/2"X14 | 6.3 | 7.5 | 19 | 22 | 27 |
3B9-08 | G1/2"X14 | G1/2"X14 | 7.5 | 7.5 | 19 | 27 | 27 |
3B9-10 | G5/8"X14 | G5/8"X14 | 9.5 | 9.5 | 22 | 30 | 30 |
3B9-12 | G3/4"X14 | G3/4"X19 | 10.9 | 10.9 | 24 | 32 | 32 |
3B9-16 | G1"X11 | G1"X11 | 11.7 | 11.7 | 30 | 41 | 41 |
