THREAD

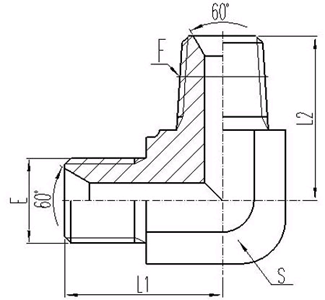

DIMENSIONS

PART NO.

E

F

L1

L2

S

1BT9-02SP

G1/8" X28

R1/8" X28

19.8

21

11

1BT9-02-04SP

G1/8" X28

R1/4" X19

22.3

25.5

14

1BT9-04-02SP

G1/4" X19

R1/8" X28

24.5

23.5

14

1BT9-04SP

G1/4" X19

R1/4" X19

24.5

25.5

14

1BT9-04-06SP

G1/4" X19

R3/8" X19

26.5

28.5

16

1BT9-04-08SP

G1/4" X19

R1/2" X14

30

36

22

1BT9-06-04SP

G3/8" X19

R1/4" X19

27.5

26.5

16

1BT9-06SP

G3/8" X19

R3/8" X19

27.5

28.5

16

1BT9-06-08SP

G3/8" X19

R1/2" X14

31

36

22

1BT9-06-12SP

G3/8" X19

R3/4" X14

34.5

43.5

27

1BT9-08-04SP

G1/2" X14

R1/4" X19

34.5

30.5

22

1BT9-08-06SP

G1/2" X14

R3/8" X19

34.5

32.5

22

1BT9-08SP

G1/2" X14

R1/2" X14

34.5

36

22

1BT9-08-12SP

G1/2" X14

R3/4" X14

37.5

43.5

27

1BT9-08-16SP

G1/2" X14

R1" X11

41

50

33

1BT9-10-08SP

G5/8" X14

R1/2" X14

35

36

22

1BT9-10-12SP

G5/8" X14

R3/4" X14

39

43.5

27

1BT9-12-06SP

G3/4" X14

R3/8" X19

40

36

27

1BT9-12-08SP

G3/4" X14

R1/2" X14

40

39.5

27

1BT9-12SP

G3/4" X14

R3/4" X14

40

43.5

27

1BT9-12-16SP

G3/4" X14

R1" X11

41

50

33

1BT9-12-20SP

G3/4" X14

R1.1/4" X11

48

59

41

1BT9-16-08SP

G1" X11

R1/2" X14

46

43

33

1BT9-16-12SP

G1" X11

R3/4" X14

46

47.5

33

1BT9-16SP

G1" X11

R1" X11

46

50

33

1BT9-16-20SP

G1" X11

R1.1/4" X11

50.5

59

41

1BT9-20-12SP

G1.1/4" X11

R3/4" X14

50.5

52

41

1BT9-20-16SP

G1.1/4" X11

R1" X11

50.5

56.5

41

1BT9-20SP

G1.1/4" X11

R1.1/4" X11

50.5

59

41

1BT9-20-24SP

G1.1/4" X11

R1.1/2" X11

54.5

62.5

48

1BT9-24-20SP

G1.1/2" X11

R1.1/4" X11

57.5

61

48

1BT9-24SP

G1.1/2" X11

R1.1/2" X11

57.5

62.5

48

1BT9-24-32SP

G1.1/2" X11

R2" X11

65

75

63

1BT9-32-24SP

G2" X11

R1.1/2" X11

67

72

63

1BT9-32SP

G2" X11

R2" X11

67

75

63
