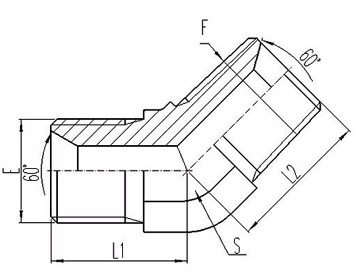

THREAD

DIMENSIONS

PART NO.

E

F

L1

L2

S

1BT4-04SP

G1/4"X19

R1/4"X19

20.3

21

14

1BT4-04-06SP

G1/4"X19

R3/8"X19

20.5

23

16

1BT4-06-04SP

G3/8"X19

R1/4"X19

22

21

16

1BT4-06SP

G3/8"X19

R3/8"X19

22

23

16

1BT4-06-08SP

G3/8"X19

R1/2"X14

24

29.5

22

1BT4-06-12SP

G3/8"X19

R3/4"X14

25.5

30.5

27

1BT4-08-06SP

G1/2"X14

R3/4"X14

27

25

22

1BT4-08SP

G1/2"X14

R1/2"X14

27

29.5

22

1BT4-08-12SP

G1/2"X14

R3/4"X14

28.5

30.5

27

1BT4-10-08SP

G5/8"X14

R1/2"X14

28.5

29.5

22

1BT4-10-12SP

G5/8"X14

R3/4"X14

30

30.5

27

1BT4-12-08SP

G3/4"X14

R1/2"X14

31

30

27

1BT4-12SP

G3/4"X14

R3/4"X14

31

30.5

27

1BT4-12-16SP

G3/4"X14

R 1"X11

32.5

38

33

1BT4-16-12SP

G 1"X11

R3/4"X14

35

32.5

33

1BT4-16SP

G 1"X11

R 1"X11

35

38

33

1BT4-16-20SP

G 1"X11

R1.1/4"X11

38.5

43

41

1BT4-20-16SP

G1.1/4"X11

R 1"X11

38.5

42

41

1BT4-20SP

G1.1/4"X11

R1.1/4"X11

38.5

43

41

1BT4-20-24SP

G1.1/4"X11

R1.1/2"X11

41.5

47.5

48

1BT4-24-20SP

G1.1/2"X11

R1.1/4"X11

44

45.5

48

1BT4-24SP

G1.1/2"X11

R1.1/2"X11

44

47.5

48

1BT4-24-32SP

G1.1/2"X11

R 2"X11

48

53

63

1BT4-32-24SP

G 2"X11

R1.1/2"X11

51

52

63

1BT4-32-24SP

G 2"X11

R 2"X11

51

53

63
