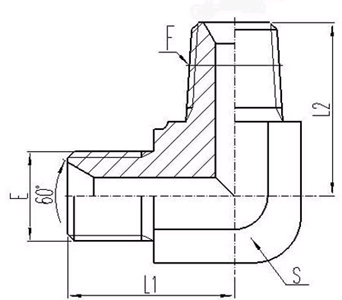

THREAD

DIMENSIONS

PART NO.

E

F

L1

L2

S

1BN9-04-02

G1/4"X19

Z1/8"X27

24.5

23.5

14

1BN9-04

G1/4"X19

Z1/4"X18

24.5

25.5

14

1BN9-06-04

G3/8"X19

Z1/4"X18

27.5

26.5

16

1BN9-06

G3/8"X19

Z3/8"X18

27.5

29.5

16

1BN9-06-08

G3/8"X19

Z1/2"X14

31

36.7

22

1BN9-06-12

G3/8"X19

Z3/4"X14

34.5

44

27

1BN9-08-06

G1/2"X14

Z3/8"X18

34.5

32.5

22

1BN9-08

G1/2"X14

Z1/2"X14

34.5

36.7

22

1BN9-12-08

G3/4"X14

Z1/2"X14

40

40

27

1BN9-12

G3/4"X14

Z3/4"X14

40

44

27

1BN9-12-16

G3/4"X14

Z1"X11.5

41

50

33

1BN9-16-12

G1"X11

Z3/4"X14

46

45.2

33
