THREAD

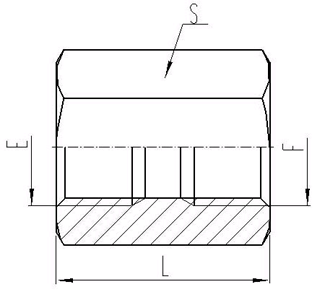

DIMENSIONS

PART NO.

E

F

S

L

7B-02

G1/8"X28

G1/8"X28

14

22

7B-02-04

G1/8"X28

G1/4"X19

19

24

7B-02-06

G1/8"X28

G3/8"19

22

26

7B-04

G1/4"X19

G1/4"X19

19

24

7B-04-06

G1/4"X19

G3/8"19

22

29

7B-04-08

G1/4"X19

G1/2"X14

27

31

7B-06

G3/8"X19

G3/8"X19

22

26

7B-06-08

G3/8"X19

G1/2"X14

27

33

7B-06-12

G3/8"X19

G3/4"X14

32

34

7B-08

G1/2"X14

G1/2"X14

27

32

7B-08-10

G1/2"X14

G5/8"X14

30

36

7B-08-12

G1/2"X14

G3/4"X14

32

36

7B-10

G5/8"X14

G5/8"X14

30

36

7B-12

G3/4"X14

G3/4"X14

32

36

7B-12-16

G3/4"X14

G1"X11

41

43

7B-16

G1"X11

G1"X11

41

40

7B-16-20

G1"X11

G1.1/4"X11

50

46

7B-20

G1.1/4"X11

G1.1/4"X11

50

44

7B-20-24

G1.1/4"X11

G1.1/2"X11

55

48

7B-24

G1.1/2"X11

G1.1/2"X11

55

45

7B-24-32

G1.1/2"X11

G2"X11

70

56

7B-32

G2"X11

G2"X11

70

54
