Product Name: 4BN-WD BSP MALE CAPTIVE SEAL HOLLOW HEX PLUG

Prouduct Model:4BN-WD

Product Category:EATON STANDARD

Product Description:：

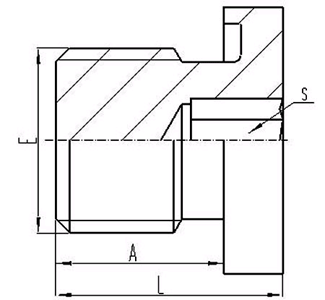

	THREAD	DIMENSIONS
PART NO.	E	A	S	L
4BN-02WD	G1/8"X28	8	5	12.2
4BN-04WD	G1/4"X19	12	6	17.2
4BN-06WD	G3/8"X19	12	8	17.2
4BN-08WD	G1/2"X14	14	10	19.2
4BN-12WD	G3/4"X14	16	12	21.2
4BN-16WD	G1"X11	16	17	22.8
4BN-20WD	G1.1/4"X11	16	22	22.8
4BN-24WD	G1.1/2"X11	16	24	22.8
