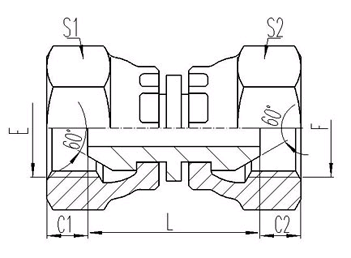

THREAD

DIMENSIONS

PART NO.

E

F

C1

C2

S1

S2

L

3B-02

G 1/8" X28

G 1/8" X28

5.5

5.5

14

14

20

3B-02-04

G 1/8" X28

G1/4" X19

5.5

5.5

14

19

23

3B-04

G1/4" X19

G1/4" X19

5.5

5.5

19

19

25

3B-04-06

G1/4" X19

G3/8" X19

5.5

6.3

19

22

26

3B-04-08

G1/4" X19

G1/2" X14

5.5

7.5

19

27

28

3B-06

G3/8" X19

G3/8" X19

6.3

6.3

22

22

29

3B-06-08

G3/8" X19

G1/2" X14

6.3

7.5

22

27

30

3B-08

G1/2" X14

G1/2" X14

7.5

7.5

27

27

32

3B-08-10

G1/2" X14

G5/8" X14

7.5

9.5

27

30

32.5

3B-08-12

G1/2" X14

G3/4" X14

7.5

10.9

27

32

33

3B-10

G5/8" X14

G5/8" X14

9.5

9.5

30

30

33

3B-10-12

G5/8" X14

G3/4" X14

9.5

10.9

30

32

33.5

3B-12

G3/4" X14

G3/4" X14

10.9

10.9

32

32

34

3B-12-16

G3/4" X14

G1" X11

10.9

11.7

32

41

35.5

3B-16

G1" X11

G1" X11

11.7

11.7

41

41

36.5

3B-20

G1.1/4"X11

G1.1/4"X11

11

11

50

50

42

3B-24

G1.1/2"X11

G1.1/2"X11

13

13

55

55

43

3B-32

G2" X11

G2" X11

16

16

70

70

49
