THREAD

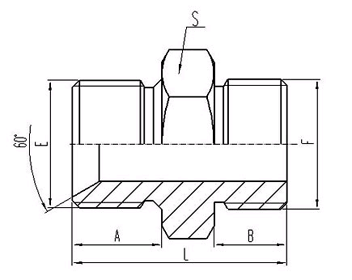

DIMENSIONS

PART NO.

E

F

A

B

S

L

1BO-04

G1/4"X19

7/16"X20

12

9.1

19

27

1BO-04-05

G1/4"X19

1/2"X20

12

9.1

19

27

1BO-04-06

G1/4"X19

9/16"X18

12

9.9

19

28

1BO-04-08

G1/4"X19

3/4"X16

12

11.1

22

31

1BO-04-10

G3/4"X19

7/8"X14

12

12.7

27

34.5

1BO-06-04

G3/8"X19

7/16"X20

13.5

9.1

22

30.5

1BO-06

G3/8"X19

9/16"X18

13.5

9.9

22

31.5

1BO-06-08

G3/8"X19

3/4"X16

13.5

11.1

22

32.5

1BO-06-10

G3/8"X19

7/8"X14

13.5

12.7

27

36.5

1BO-08-05

G1/2"X14

1/2"X20

16

9.1

27

35

1BO-08-06

G1/2"X14

9/16"X18

16

9.9

27

36

1BO-08

G1/2"X14

3/4"X16

16

11.1

27

37

1BO-08-10

G1/2"X14

7/8"X14

16

12.7

27

38.5

1BO-08-12

G1/2"X14

1.1/16"X12

16

15.1

32

42

1BO-08-16

G1/2"X14

1.5/16"X12

16

15.1

38

42

1BO-10-08

G5/8"X14

3/4"X16

17.5

11.1

30

38.5

1BO-10

G5/8"X14

7/8"X14

17.5

12.7

30

40

1BO-10-12

G5/8"X14

1.1/16"X12

17.5

15.1

32

43.5

1BO-12-08

G3/4"X14

3/4"X16

18.5

11.1

32

40.5

1BO-12-10

G3/4"X14

7/8"X14

18.5

12.7

32

42.5

1BO-12

G3/4"X14

1.1/16"X12

18.5

15.1

32

44.5

1BO-12-14

G3/4"X14

1.3/16"X12

18.5

15.1

36

44.5

1BO-12-16

G3/4"X14

1.5/16"X12

18.5

15.1

38

44.5

1BO-12-20

G3/4"X14

1.5/8"X12

18.5

15.1

50

48.5

1BO-16-10

G1"X11

7/8"X14

20.5

12.7

41

46.5

1BO-16-12

G1"X11

1.1/16"X12

20.5

15.1

41

48.5

1BO-16-14

G1"X11

1.3/16"X12

20.5

15.1

41

48.5

1BO-16

G1"X11

1.5/16"X12

20.5

15.1

41

48.5

1BO-16-20

G1"X11

1.5/8"X12

20.5

15.1

50

50.5

1BO-20-16

G1.1/4"X11

1.5/16"X12

20.5

15.1

50

50.5

1BO-20

G1.1/4"X11

1.5/8"X12

20.5

15.1

50

50.5

1BO-24

G1.1/2"X11

1.7/8"X12

23

15.1

55

53
