Product Name: 1BL BSP MALE DOUBLE USE FOR 60��SEAT OR BONDED SEAL/METRIC MALE WITH BONDED SEAL

Prouduct Model:1BL

Product Category:EATON STANDARD

Product Description:：

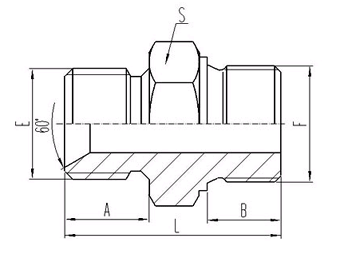

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S	L
1BL-02-10	G1/8"X28	M10X1	11	8	17	25
1BL-04-10	G1/4"X19	M10X1	12	8	17	26
1BL-04-14	G1/4"X19	M14X1.5	12	12	19	30
1BL-06-14	G3/8"X19	M14X1.5	13.5	12	19	31.5
1BL-06-16	G3/8"X19	M16X1.5	13.5	12	22	33.5
1BL-06-18	G3/8"X19	M18X1.5	13.5	12	24	33.5
1BL-08-20	G1/2"X14	M22X1.5	16	14	27	33.5
1BL-08-22	G1/2"X14	M22X1.5	16	14	27	41
1BL-12-22	G3/4"X14	M22X1.5	18.5	14	30	42.5
1BL-12-27	G3/4"X14	M27X2	18.5	16	36	45.5
1BL-16-27	G1"X11	M27X2	20.5	16	36	47.5
1BL-16-33	G1"X11	M33X2	20.5	18	41	52
1BL-20-42	G1.1/4"X11	M42X2	20.5	20	50	57.5
