Product Name: 1BE BSP MALE 60��SEAT OR BONDED SEAL/METRIC MALE O-RING FLAT SEAL

Prouduct Model:1BE

Product Category:EATON STANDARD

Product Description:：

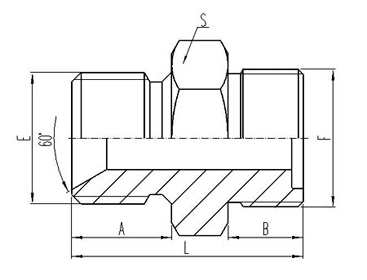

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S
1BE-04-14	G1/4"X19	M14X1.5	12	11	29	19
1BE-06-16	G3/8"X19	M16X1.5	13.5	11	32.5	22
1BE-06-16	G3/8"X19	M18X1.5	13.5	11	32.5	22
1BE-08-22	G1/2"X14	M22X1.5	16	12	38	27
1BE-10-27	G5/8"X14	M27X1.5	17.5	13	40.5	30
1BE-12-30	G3/4"X14	M30X1.5	18.5	14	43.5	32
1BE-16-36	G1"X11	M36X2	20.5	16	49.5	41
1BE-16-39	G1"X11	M39X2	20.5	18	51.5	41
1BE-20-39	G1.1/4"X11	M39X2	20.5	18	53.5	50
1BE-20-45	G1.1/4"X11	M45X2	20.5	20	55.5	50
