Product Name: 1B-WD BSP MALE DOUBLE USE FOR 60��SEAT OR BONDED SEAL/BSP MALE CAPTIVE SEAL

Prouduct Model:1B-WD

Product Category:EATON STANDARD

Product Description:：

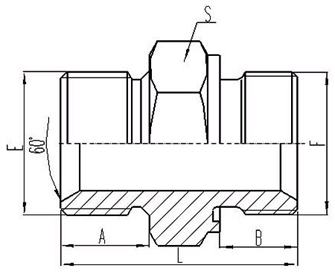

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S
1B-04WD	G1/4"X19	G1/4"X19	12	12	32	19
1B-06WD	G3/8"X19	G3/8"X19	13.5	12	34	22
1B-08WD	G1/2"X14	G1/2"X14	16	14	43	27
1B-12WD	G3/4"X14	G3/4"X14	18.5	16	46.5	32
1B-16WD	G1"X11	G1/"X11	20.5	18	54.5	41
1B-20WD	G1.1/4"X11	G1.1/4"X11	20.5	20	58.5	50
