THREAD

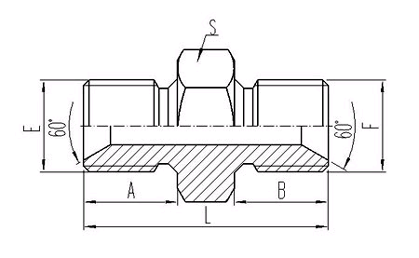

DIMENSIONS

PART NO.

E

F

A

B

L

S

1B-02

G1/8"X28

G1/8"X28

10

10

26

14

1B-04

G1/4"X19

G1/4"X19

12

12

30

19

1B-04-06

G1/4"X19

G3/8"X19

12

13.5

33.5

22

1B-06

G3/8"X19

G3/8"X19

13.5

13.5

33

22

1B-06-08

G3/8"X19

G1/2"X14

13.5

16

39.5

27

1B-08

G1/2"X14

G1/2"X14

16

16

42

27

1B-08-12

G1/2"X14

G3/4"X14

16

18.5

45.5

32

1B-10

G5/8"X14

G5/8"X14

17.5

17.5

45

30

1B-12

G3/4"X14

G3/4"X14

18.5

18.5

48

32

1B-16

G1"X11

G1"X11

20.5

20.5

54

41

1B-16-20

G1"X11

G1.1/4"X11

20.5

20.5

58

50

1B-20

G1.1/4"X11

G1.1/4"X11

20.5

20.5

58

50

1B-20-24

G1.1/4"X11

G1.1/2"X11

20.5

23

60.5

55

1B-24

G1.1/2"X11

G1.1/2"X11

23

23

63

55

1B-32

G2"X11

G2"X11

25.5

25.5

68

70

1B-40

G2.1/2"X11

G2.1/2"X11

32

32

81

90

1B-48

G3"X11

G3"X11

36

36

92

100
