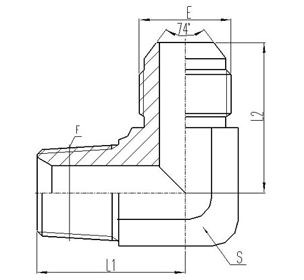

Product Name: 1QT9-SP 90ELBOW METRIC MAEL 74CONE/BSPT MALE
Prouduct Model:1QT9-SP
Product Category:EATON STANDARD
Product Description::



THGEAD

DIMENSIONS

PAGT NO.

E

F

L1

L2

S

1QT9-14-04SP

M14X1.5

R1/4"X19

30.2

25.5

14

1QT9-16-04SP

M16X1.5

R1/4"X19

32

26.5

16

1QT9-18-06SP

M18X1.5

R3/8"X19

34

29

19

1QT9-18-08SP

M18X1.5

R1/2"X14

36

36

22

1QT9-22-08SP

M22X1.5

R1/2"X14

37.5

36

22

1QT9-27-08SP

M27X1.5

R1/2"X14

41.5

39.5

27

1QT9-27-12SP

M27X1.5

R3/4"X14

41.5

44

27

1QT9-30-12SP

M30X1.5

R3/4"X14

45.8

45.5

30

1QT9-33-12SP

M33X2

R3/4"X14

49.5

47.5

33

1QT9-36-16SP

M36X2

R1"X11

51.5

52

36

1QT9-39-16SP

M39X2

R1"X11

55.5

55.2

41

1QT9-45-20SP

M45X2

R1.1/4"11

62.5

61

48

Note: In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix RN� after our part No. , for example 1QT9-14-04SPRN,The sleeve No. is ANB500-Q,and the nut No. is ANB200-Q.
