PART NO. | THREAD | TUBE O.D. | DIMENSIONS | ||||||
| E |
| D | A | L | S1 | S2 | |||
| 4Q-10 | M10¡Á1 | 5 | 12 | 18 | 12 | 14 | |||
| 4Q-12 | M12¡Á1.5 | 6 | 15.7 | 21.5 | 14 | 14 | |||
| 4Q-14 | M14¡Á1.5 | 8 | 17 | 23 | 17 | 17 | |||
| 4Q-16 | M16¡Á1.5 | 10 | 18 | 24 | 17 | 19 | |||
| 4Q-18 | M18¡Á1.5 | 12 | 18 | 24 | 19 | 22 | |||
| 4Q-22 | M22¡Á1.5 | 14 | 19.5 | 27.5 | 24 | 27 | |||
| 4Q-24 | M24¡Á1.5 | 16 | 20 | 30 | 27 | 30 | |||
| 4Q-27 | M27¡Á1.5 | 18 | 20 | 30 | 30 | 32 | |||
| 4Q-30 | M30¡Á1.5 | 20 | 23 | 34 | 32 | 36 | |||
| 4Q-30E | M30¡Á2 | 20 | 26 | 37 | 32 | 36 | |||
| 4Q-33 | M33¡Á2 | 22 | 26 | 37 | 36 | 38 | |||
| 4Q-36 | M36¡Á2 | 25 | 26 | 38 | 38 | 41 | |||
| 4Q-39 | M39¡Á2 | 28 | 26 | 39 | 41 | 46 | |||
| 4Q-42 | M42¡Á2 | 32 | 28.5 | 41.5 | 46 | 50 | |||
| 4Q-45 | M45¡Á2 | 34 | 28.5 | 41.5 | 46 | 55 | |||

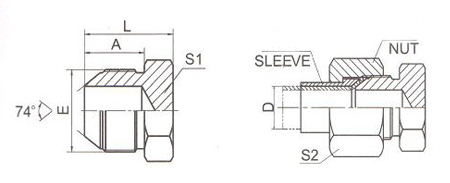

Note: In case if you are interested to order the adapter in complete set with sleeve and nut ,it is necessary to insert suffix ¡°RN� after our part No. ,for example �4Q-18RN� The sleeve NO.is NB500-Q and the nut NO.is NB200-Q
