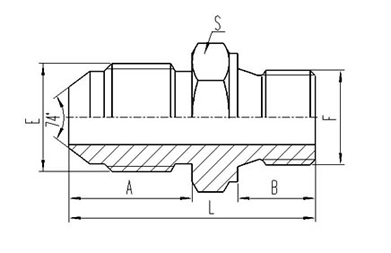

Product Name: 1QL METRIC 74¡ãCONE /METRIC MALE WITH BONDED SEAL
Prouduct Model:1QL
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

A

B

L

S

1QL-10

M10X1

M10X1

12

8

27

17

1QL-12

M12X1.5

M12X1.5

15.7

12

35.2

17

1QL-12-10

M12X1.5

M10X1

15.7

8

30.5

17

1QL-14

M14X1.5

M14X1.5

17

12

36.5

19

1QL-14-10

M14X1.5

M10X1

17

8

32

17

1QL-14-12

N14X1.5

M12X1.5

17

12

36.5

17

1QL-14-16

N14X1.5

M16X1.5

17

12

37

22

1QL-16

M16X1.5

M16X1.5

18

12

38

22

1QL-16-14

M16X1.5

N14X1.5

18

12

37

19

1QL-18

M18X1.5

M18X1.5

18

12

39.5

24

1QL-18-16

M18X1.5

M16X1.5

18

12

38

22

1QL-22

M22X1.5

M22X1.5

19.5

14

43.5

27

1QL-22-18

M22X1.5

M18X1.5

19.5

12

41

24

1QL-27

M27X1.5

M27X1.5

20

16

49

34

1QL-27-22

M27X1.5

M22X1.5

20

14

44

30

1QL-30-27

M30X1.5

M27X1.5

23

16

50

34

1QL-33

M33X2

M33X2

26

18

57

41

1QL-33-27

M33X2

M27X1.5

26

16

55

34

1QL-36-33

M36X2

M33X2

26

18

58

41

1QL-39-33

M39X2

M33X2

26

18

59

41

1QL-42

M42X2

M42X2

28.5

20

65.5

50

1QL-45-42

M45X2

M42X2

28.5

20

65.5

50

?:,?¡°RN�,?1QL-10RN,ANB500-Q,ANB200-Q?
Note: In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix ¡°RN� after our part No. , for example 1QL-10RN,The sleeve No. is ANB500-Q,and the nut No. is ANB200-Q.
