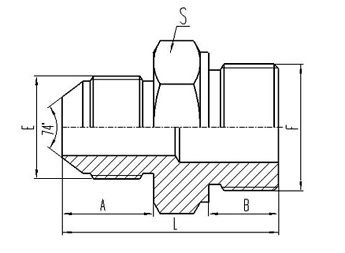

Product Name: 1QH METRIC 74CONE /METRIC MALE L-SERIES ISO 6149-3
Prouduct Model:1QH
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

A

B

L

S

1QH-14-12

M14X1.5

M12X1.5

17

11

36.5

17

1QH-16-14

M16X1.5

M14X1.5

18

11

37.5

19

1QH-18-16

M18X1.5

M16X1.5

18

11.5

38

22

1QH-22-18

M22X1.5

M18X1.5

19.5

12.5

40.5

24

1QH-27-22

M27X2

M22X1.5

20

13

44

27

1QH-30-27

M30X2

M27X2

23

16

50

32

1QH-33-27

M33X2

M30X2

26

16

53

34

1QH-36-33

M36X2

M33X2

26

16

55

41

1QH-39-33

M39X2

M33X2

26

16

55

41

1QH-45-42

M45X2

M42X2

28.5

16

59.5

50

?:,?RN�,?1QH-14-12RN,ANB500-Q,ANB200-Q?
Note: In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix RN� after our part No. , for example 1QH-14-12RN,The sleeve No. is ANB500-Q,and the nut No. is ANB200-Q.
