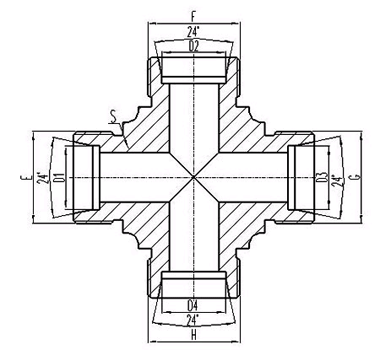

NUMBER | THREAD | TUBE.O.D. | DIMENSIONS |
PART NO. | E,F,G,H | D1,D2,D3,D4 | S |
XC-12 | M12X1.5 | 6 | 12 |
XC-14 | M14X1.5 | 8 | 12 |
XC-16 | M16X1.5 | 10 | 14 |
XC-18 | M18X1.5 | 12 | 17 |
XC-22 | M22X1.5 | 15 | 19 |
XC-26 | M26X1.5 | 18 | 24 |
XC-30 | M30X2 | 22 | 27 |
XC-36 | M36X2 | 28 | 36 |
XC-45 | M45X2 | 35 | 41 |
XC-52 | M52X2 | 42 | 50 |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example "XC-12RN".
Copyright©2014 Yuyao DingFeng HyDraulic Co.,Ltd. All Rights Reserved
Add: Industrial Park zhang Ting Yuyao, Powered byYishang Network.Inc
HYDRAULIC ADAPTER
