Product Name: 6D9 90ELBOW BULKHEAD FITTINGS
Prouduct Model:6D9
Product Category:EATON STANDARD
Product Description::

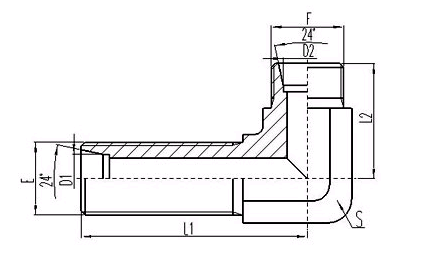

THREAD

DIMENSIONS

PART NO.

E

F

D1

D2

L1

L2

S1

6D9-14

M14X1.5

M14X1.5

6

6

40

36.5

14

6D9-16

M16X1.5

M16X1.5

8

8

42

36.5

16

6D9-18

M18X1.5

M18X1.5

10

10

45

37

19

6D9-20

M20X1.5

M20X1.5

12

12

50

38

22

6D9-22

M22X1.5

M22X1.5

14

14

53

38.5

22

6D9-24

M24X1.5

M24X1.5

16

16

57

40

24

6D9-30

M30X2

M30X2

20

20

67

44

30

6D9-36

M36X2

M36X2

25

25

76

47

36

6D9-42

M42X2

M42X2

30

30

87

51

41

6D9-52

M52X2

M52X2

38

38

100

53

55

Note: In case if you are interested to order the adapter with lock nut, please insert suffix LN after our part No. ,for example 6D9-14LN;order the adapter with cutting ting and nut ,insert suffix RN after part No. ,for example 6D9-14RN;order the adapter with lock nut and cutting ring and cut ,insert suffix LNRN after part No. ,for example 6D9-14LNRN?
