Product Name: 6C9 90ELBOW BULKHEAD FITTINGS
Prouduct Model:6C9
Product Category:EATON STANDARD
Product Description::

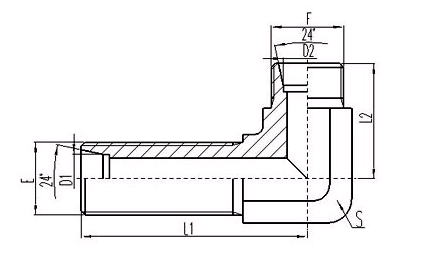

THREAD

DIMENSIONS

PART NO.

E

F

D1

D2

L1

L2

S1

6C9-12

M12X1.5

M12X1.5

6

6

33

34

11

6C9-14

M14X1.5

M14X1.5

8

8

38

34

14

6C9-16

M16X1.5

M16X1.5

10

10

40

35

16

6C9-18

M18X1.5

M18X1.5

12

12

44

36

19

6C9-22

M22X1.5

M22X1.5

15

15

51

38

22

6C9-26

M26X1.5

M26X1.5

18

18

55

40

27

6C9-30

M30X2

M30X2

22

22

65

42

30

6C9-36

M36X2

M36X2

28

28

72

43

36

6C9-45

M45X2

M45X2

35

35

84

47

48

6C9-52

M52X2

M52X2

42

42

94

47

55

Note: In case if you are interested to order the adapter with lock nut, please insert suffix LN after our part No. ,for example 6C9-30LN, order the adapter with cutting ting and nut ,insert suffix RN after part No. ,for example 6C9-30RN, order the adapter with lock nut and cutting ring and cut ,insert suffix LNRN after part No. ,for example 6C9-30LNRN.
