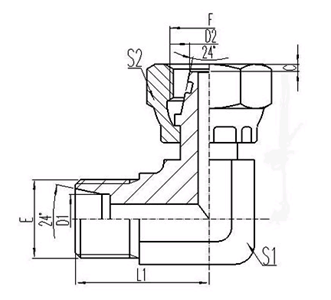

| THREAD | TUBE O.D. | DIMENSIONS | |||||
PART NO. | E | F | D1 | D2 | L1 | C | S1 | S2 |
2D9-16 | M16X1.5 | M16X1.5 | 8 | 8 | 27 | 1.5 | 16 | 22 |
2D9-18 | M18X1.5 | M18X1.5 | 10 | 10 | 28.5 | 2 | 19 | 24 |
2D9-20 | M20X1.5 | M20X1.5 | 12 | 12 | 28.5 | 2.5 | 19 | 27 |
2D9-22 | M22X1.5 | M22X1.5 | 14 | 14 | 31.2 | 2.5 | 22 | 27 |
2D9-24 | M24X1.5 | M24X1.5 | 16 | 16 | 32.2 | 2.5 | 24 | 30 |
2D9-30 | M30X2 | M30X2 | 20 | 20 | 41.5 | 3 | 30 | 36 |
2D9-36 | M36X2 | M36X2 | 25 | 25 | 46.5 | 5 | 36 | 41 |
2D9-42 | M42X2 | M42X2 | 30 | 30 | 49.5 | 5 | 41 | 50 |
2D9-52 | M52X2 | M52X2 | 38 | 38 | 61.5 | 6.5 | 55 | 60 |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix ¡°RN¡± after our part No. ,for example ¡°2D9-16RN¡±
