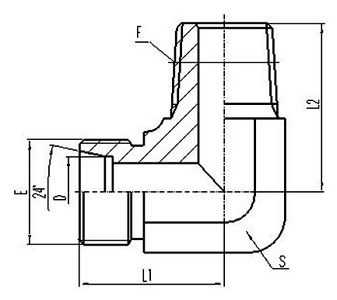

Product Name: 1DT9-SP 90ELBOW METRIC MALE 24SEAT/BSPT MALE
Prouduct Model:1DT9-SP
Product Category:EATON STANDARD
Product Description::



THREAD

TUBE O.D.

DIMENSIONS

PART NO.

E

F

D

L1

L2

S

1DT9-14-04SP

M14X1.5

R1/4"X19

6

25.8

25.5

14

1DT9-16-04SP

M16X1.5

R1/4"X19

8

27

26.5

16

1DT9-18-06SP

M18X1.5

R3/8"X19

10

28.5

30.5

19

1DT9-20-04SP

M20X1.5

R1/4"X19

12

28.5

28

19

1DT9-20-06SP

M20X1.5

R3/8"X19

12

28.5

30.5

19

1DT9-22-06SP

M22X1.5

R3/8"X19

14

31.2

32.5

22

1DT9-22-08SP

M22X1.5

R1/2"X14

14

31.2

36

22

1DT9-24-06SP

M24X1.5

R3/8"X19

16

32.2

33.5

24

1DT9-24-08SP

M24X1.5

R1/2"X14

16

32.2

37.3

24

1DT9-30-12SP

M30X2

R3/4"X14

20

41.5

45.3

30

1DT9-36-16SP

M36X2

R1"X11

25

46.5

52.5

36

1DT9-42-16SP

M42X2

R1"X11

30

49.5

56.5

41

1DT9-42-20SP

M42X2

R1.1/4"X11

30

49.5

56.5

41

1DT9-52-20SP

M52X2

R1.1/4"X11

38

61.5

67

55

1DT9-52-24SP

M52X2

R1.1/2"X11

38

61.5

68

55

?:,?RN,?1DT9-14-04SPRN
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example 1DT9-14-04SPRN
