THREAD

TUBE O.D.

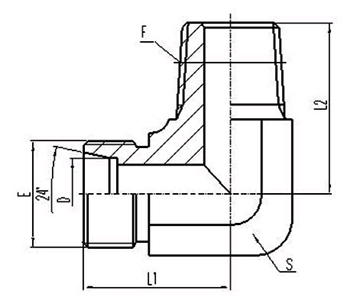

DIMENSIONS

PART NO.

E

F

D

L1

L2

S

1CT9-12-04SP

M12X1.5

R1/4"X19

6

23.3

25.5

14

1CT9-14-04SP

M14X1.5

R1/4"X19

8

25.3

25.5

14

1CT9-16-04SP

M16X1.5

R1/4"X19

10

27.2

26.5

16

1CT9-16-06SP

M16X1.5

R3/8"X19

10

27.2

28.5

16

1CT9-18-04SP

M18X1.5

R1/4"X19

12

28.5

28

19

1CT9-18-06SP

M18X1.5

R3/8"X19

12

28.5

30.5

19

1CT9-18-08SP

M18X1.5

R1/2"X14

12

30.5

36

22

1CT9-22-06SP

M22X1.5

R3/8"X19

15

30.5

32.5

22

1CT9-22-08SP

M22X1.5

R1/2"X14

15

30.5

36

22

1CT9-26-08SP

M26X1.5

R1/2"X14

18

35.5

39.5

27

1CT9-26-12SP

M26X1.5

R3/4"X14

18

35.5

43.5

27

1CT9-30-12SP

M30X2

R3/4"X14

22

41

45.3

30

1CT9-36-16SP

M36X2

R1"X11

28

44.7

52.5

36

1CT9-42-16SP

M42X2

R1"X11

32

48.5

56.5

41

1CT9-42-20SP

M42X2

R1.1/4"X11

32

48.5

56.5

41

1CT9-45-16SP

M45X2

R1"X11

35

52.5

60

48

1CT9-45-20SP

M45X2

R1.1/4"X11

35

52.5

61

48

1CT9-52-20SP

M52X2

R1.1/4"X11

42

58.5

65

55

1CT9-52-24SP

M52X2

R1.1/2"X11

42

58.5

67

55
