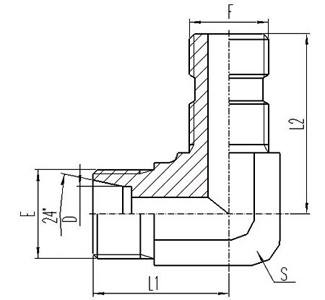

Product Name: 1DO9-OG 90ELBOW UNUNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING ISO 11926
Prouduct Model:1DO9-OG
Product Category:EATON STANDARD
Product Description::

THREAD

TUBE O.D

DIMENSIONS

PART NO.

E

F

D1

L1

L2

S

1DO9-14-04OG

M14X1.5

7/16"X20

6

24.5

30

14

1DO9-16-06OG

M16X1.5

9/16" X18

8

25.7

33.3

16

1DO9-18-06OG

M18X1.5

9/16" X18

10

27

33.5

19

1DO9-18-08OG

M18X1.5

3/4"X16

10

27

37.5

19

1DO9-20-08OG

M20X1.5

3/4"X16

12

27

37.5

19

1DO9-22-10OG

M22X1.5

7/8"X14

14

31

44

22

1DO9-24-10OG

M24X1.5

7/8"X14

16

32.5

46.5

24

1DO9-30-12OG

M30X2

1.1/16"X12

20

38.8

53.5

30

1DO9-36-16OG

M36X2

1.5/16"X12

25

44.8

57.5

36

1DO9-42-20OG

M42X2

1.5/8"X12

30

49.7

59.5

41

1DO9-52-24OG

M52X2

1.7/8"X12

38

61.8

70.5

55

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example A1DO9-14-04OGRN
